24VDC Flexible Adhesive Led Strip Lights 528Pcs Per Meter

Product Categories
A.L Lighting Limited
Contact Now

24VDC Flexible Adhesive Led Strip Lights 528Pcs Per Meter

Brand Name : A.L

Model Number : AL-SL-D

Certification : CE ROHS UL

Place of Origin : Guangdong,China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 40,000meters per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : 5m per reel,5m packed in one anti-static bag, 80bags / 1 CTN(52x31x30CM)

Light Source : COB LED

LED Qty : 320pcs/m,528pcs/m

IP Grade : IP20,IP65,IP67,IP68

Input Voltage : DC12/24V

Color : Red,Blue,Green,2700-6500K White

Warranty : 3 years

CRI : Ra90+,Ra80+

Contact Now

​
Flexible Adhesive Led Strip Lights With COB LED Chip 528Pcs Per Meter 12/24VDC


Features

  • Dotless lighting performanc
  • 180 degree beam angle
  • DC12/24V safe low voltage
  • Red,Green,Blue,White color 2000~6500K
  • 520 & 328 chips per meter
  • IP20,IP65,IP67,IP68
  • One chip faild,do not affect other chips



About New COB Flexible Strip Lights

  • This is new flexible strip lights with new led pacakaging technology.
  • COB as light source,high density get to 528leds/meter,very slim interval between leds,so the light strip has spotless lighting performance.
  • Various color options:2700K 3000K 4000K 5000K 6500K,red,green,blue,choose the right color for your request.
  • It's cuttable,the shortest length for cutting is 22.73mm.
  • When one chip stop working,it will not affect other led chips.
  • With 3M adhesive tape,you can install and matain it very easy.
  • IP20,IP65,IP67,IP68 optional,so it can be used both in indoor and outdoor lighting.


Technical Datas

Model No.

AL-SL-D
Input Voltage DC12/24V
Power 7.7W/m,10W/m
Length 5m
CRI Ra>90
Lumen 106lm/W
Color Temperature 2000K~6500K
LED Chip COB
Color WW/NW/CW/R/G/B
Beam Angle 180degree
Operation Temperature -250C ~550C
FPC Color White/Black/Golden
Carton Package Dimension 52*31*30CM
Carton Package Qty 80reel
Certification CE,RoHS
Warranty 2years



Models Options

Model Number LED Qty Power FPC Width Lumen Min.cut
AL-SL-D328 328pcs/m 7.7W/m 8mm 693~816lm 50mm
AL-SL-D520 520pcs/m 10W/m 10mm 880~1000lm 22.37mm



LED & PCB Option

CRI 80+,90+
Color White,Red,Green,Blue
Color Temperature 2700K 3000K 4000K 5000K 6500K 10000K
PCB Thickness 2oz,3oz
PCB color White/Black/Golden



Photoes

  • COB LED details

24VDC Flexible Adhesive Led Strip Lights 528Pcs Per Meter

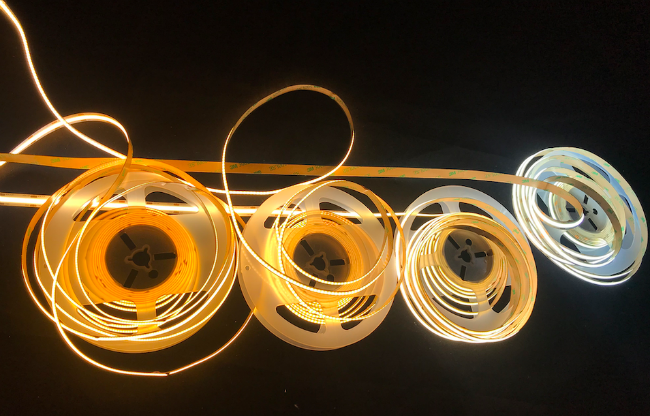

  • Lighting Color Show

24VDC Flexible Adhesive Led Strip Lights 528Pcs Per Meter

24VDC Flexible Adhesive Led Strip Lights 528Pcs Per Meter


Note

  • Please read the spefication and precautions carefuly before installation.
  • Please don't use nail or sharp instruments to install led strip on the object.
  • Fixed led strip,you can not use acidic glue,it's recommended to use a neutral glue.

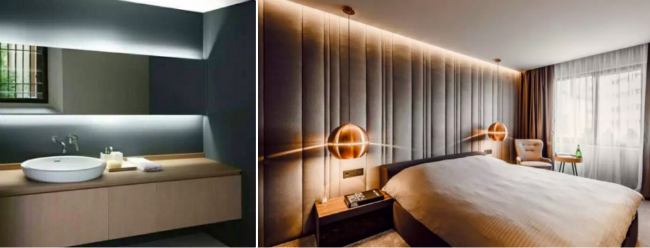

Application

  • City skyline lighting villas advertising wall signs chrimas,decorative landscape
  • Irregular design of body decoration
  • Establishments ceiling cavity design
  • Public lighting,Furniture dark groove trim
  • Automotive beauty

24VDC Flexible Adhesive Led Strip Lights 528Pcs Per Meter
